Smarthon IoT:bit

Smarthon IoT:bit

USD26.90

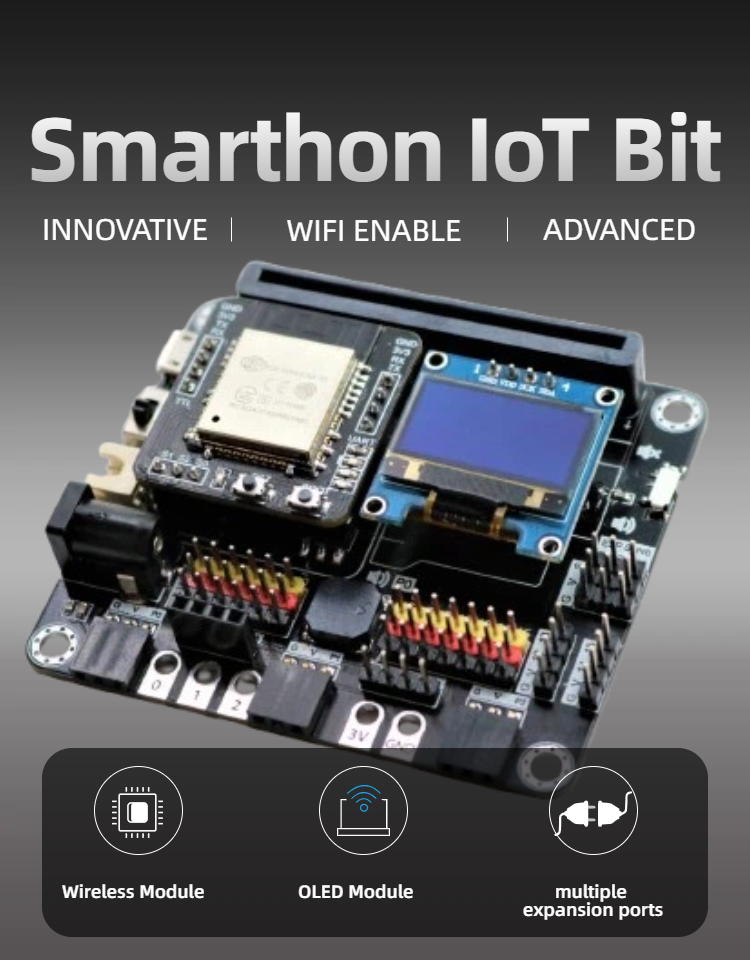

Smarthon IoT Bit is an IoT orientated expansion board for Micro:bit. With the help of this, Micro:bit able to connect to different sensors or actuators without welding and start to use the internet services.

Out of stock

We offer discounts for bulk orders. Please click the button below and provide us with your order details.
Get a Quote
SKU SS-M003-01 Category

Description

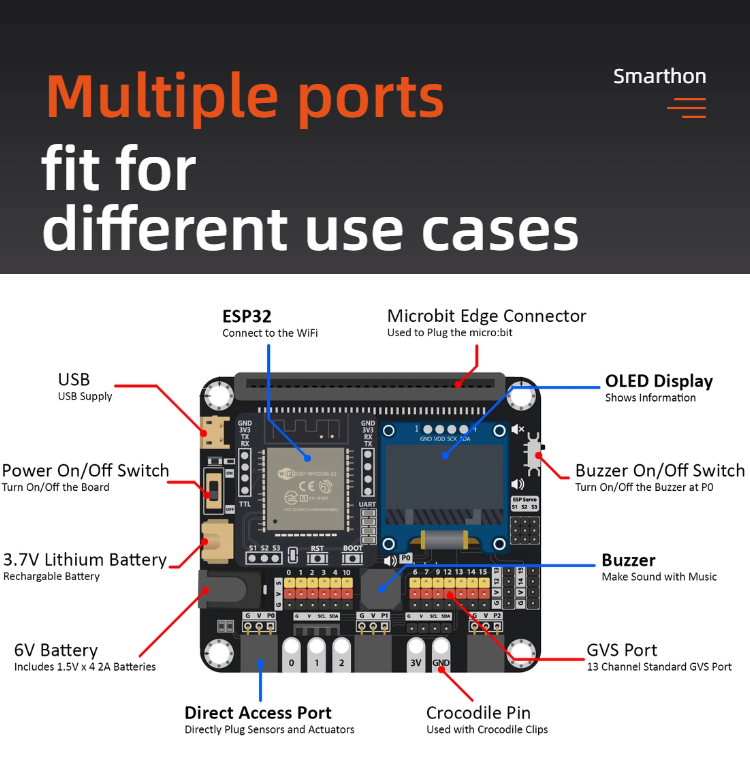

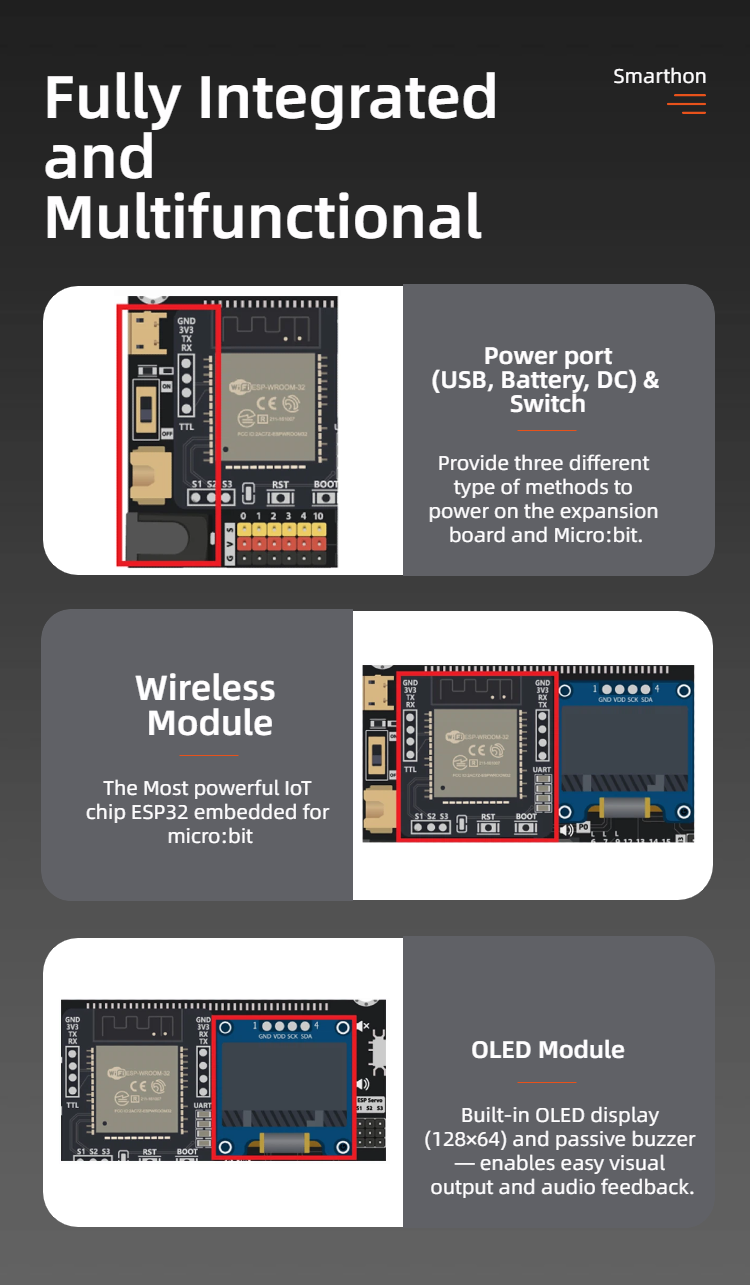

  • The Most powerful IoT chip ESP32 embedded for micro:bit
  • Exchangeable wireless modular design (ESP8266, ESP32, BLE)
  • Integrated OLED and Onboard buzzer embedded
  • Extended I/O port x13, I2C port x2 from mirco:bit with GVS socket
  • Extended Servo port x3 from ESP module
  • Various types of power supply (USB, 3.7V lithium battery, 6V Normal battery)
  • Extra Port: Crocodile Pin, Quick Access Port and 4-Pin Port for different usage

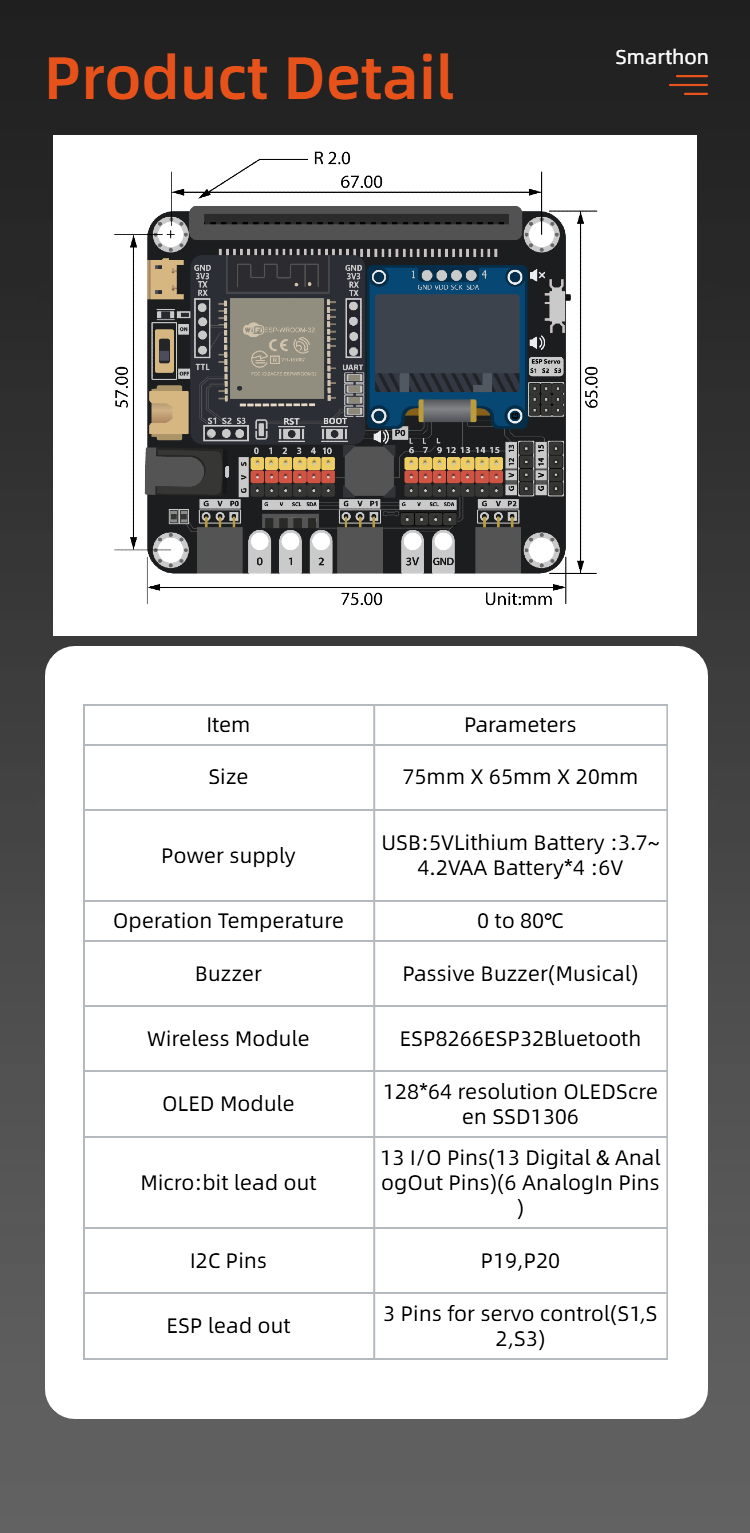

Product Size

Product size: 75mm X 65mm X 20mm
PCB thinkness: 1.5mm
Hole diameter: 4mm
